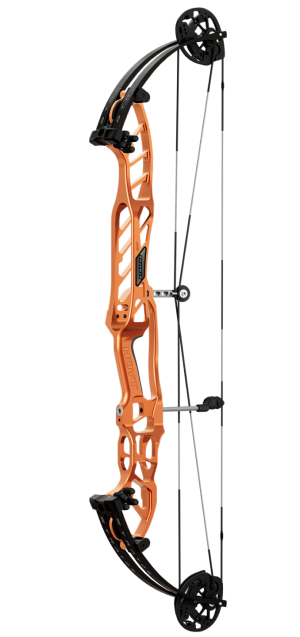

Hoyt Stratos 40

The new Hoyt Stratos raises the industry benchmark to match today's demands of the world's best archers. The Stratos features the all new, extremely adjustable HBT Cam system, an updated riser geometry for optimised centre of gravity 36" or 40" axle-to-axle options, the proven modular grip system and integrated arrow rest mounting capabilities. Available in six CeraKote colour options, along with two powder coat options.

The birth of a new benchmark

The Hoyt Stratos is born from a pedigree of Hoyt target bows that have set the bar for target bow design across the archery world. Legendary Hoyt tournament bows such as the Ultra Elite, Vantage Elite, Contender, Prevail, Invicta and many others, have laid the foundation for the next generation of record breaking performance. Hoyt Stratos offers unrivalled adjustability and customisation for optimal personalised performance and a new benchmark in bow design.

HBT cam system

The pinnacle of performance and adjustability. The all new HBT cam system represents the biggest change to Hoyt target cams in over two decades. The HBT cam features quarter-inch draw length adjustments, adjustable let-off between 65, 70 and 75% and the ability to change between a soft or hard wall feel - all within one cam system. HBT cams will deliver the speed, feel and personalisation required to fit any shooting style. Also comes in SVX cam which is not a stocked item but can be special ordered. Please enquire.

• ¼" draw length adjustments
• Adjustable let-off of 65, 70 or 75%
• Adjustable wall - hard or soft
• Multiple cam and mod sizes for optimal performance across the draw length range

New Shoot-Thru riser geometry

Hoyt's Shoot-Thru TEC risers are unmatched in stiffness and consistency, and now the Stratos combines a new geometry for even more forgiveness. A more neutral riser geometry shifts the centre-of-gravity over the shooters hand which makes it point, aim and balance more naturally.

Patented Modular Grip System

Where the rubber hits the road, the bow grip is make or break for comfort, forgiveness and accuracy. Hoyt's patented Modular Grip System allows you to select a grip angle that feels and performs the best for you. Available in 0, +4 and +8 degree angles and in standard height and +1/8" height to fine tune your draw length without adjusting strings and cables. 3 Grip Angles are included with your bow of 0, +4 and +8 degree

In-Line Integrate rest mounting option

Integrate arrow rest mounting option allows for the use of streamlined, modern rest systems along with traditional, berger hole mounted arrow rests capable of dual mounting screws.

Stratos 36 is also available and is sold separately.

Eight colours, endless possibilities

Stratos is available in five CeraKote colours of Slate, Liquid Blue, Pink Champagne, Championship Red, Black Ink and two Powder Coat options of Buckskin and Wilderness

As part of your bow purchase, you receive a Hoyt promo kit comprising

• 3 Grip Angles
• An 18 page Owner's Manual
• Hoyt Decal
• Warranty Registration Card
• Hoyt Wrist Band
• Hoyt Cap

Specs at a glance

• ATA speed 318fps
• Weight ranges 30-40lbs, 40-50lbs, 45-55lbs, 50-60lbs, 60-70lbs. Please specify weight required
• Draw length range 25.5"-33"
• Brace height 7.375"
• Axle to Axle 40.625"
• Mass weight 5.1lbs
• Adjustable Let-Off 65%, 70% and 75%
• HBT Cam extremely adjustable with quarter inch draw length adjustments with ability to change between soft or hard wall feel. Also comes in SVX cam which is not a stocked item but can be special ordered. Please enquire
• Shoot-Thru TEC Riser geometry for even more forgiveness, optimised centre of gravity & unmatched stiffness and consistency
• Bow Grip for comfort, forgiveness & accuracy, you select a grip angle that feels & performs the best for you
• +1/8" height to fine tune your draw length without adjusting strings & cables
• Parallel split limb technology
• Uniform Stress Distribution
• Multi layer lamination limbs
• FUSE Custom Strings and Cables built rock-solid
• Roller Guard
• Aluminium TEC lite riser
• Dual rear stabiliser mountings
• Available in Right Hand and Left Hand. Please specify RH or LH

• Available in CeraKote Championship Red, Liquid Blue, Slate, Pink Champagne, Black Ink and Powder Coat Buckskin & Wilderness. Please specify colour choice

The new Hoyt Stratos raises the industry benchmark to match today's demands of the world's best archers. Order your Stratos 40 today. Get Serious. Get Hoyt.
