Hoyt Formula XD Riser

Brand: Hoyt

The most advanced Recurve Riser Hoyt has ever designed. Pro Series Limb Dovetails with adjustable weights, a 360 damper system and optimised grip position as well as the Vertatune Clicker plate, the 2023 Formula XD is extremely well balanced and the ultimate recurve riser available today!

Hoyt Formula XD Riser

Price:
          $1,239.95 excl. GST**
** Your price if you do not reside in Australia

Hoyt Formula XD Riser Description

Formula XD Riser

The sleek, elegant Formula XD is refined from the Olympic and World Championship winning pedigree of previous generation Hoyt recurve risers. The Formula XD is designed with a grip-to-limb pivot geometry that optimises tuning when paired with modern, high-performance recurve limb, eliminating unwanted vertical nock travel

360 Damper System

Formula XD features a new 360 Damper System - an all-axes vibration killer providing a significant improvement in shot-feel. The Formula XD is designed with Dynamic Flex Control to provide riser flex where it's ideal and stiffness where it's needed. Formula XD will provide a shot experience like no other Hoyt before it.

String Tension Technology

This unprecedented advancement and innovation in recurve archery allows shooters to adjust the string tension to customise limb feel. These small adjustments at the limb rocker point make the limbs feel shorter or longer, without any other alterations to the bow, limbs or the tune of the bow.

Perfect Balance Weight System

The Perfect Balance Weight System (PBWS) features two 1 oz weights that can be moved between the top and bottom limb pockets, allowing archers to customise the vertical balance of the Formula XD.

Pro Series Dovetail Block

A refined Pro Series Dovetail block features an all new precision alloy insert. This helps eliminate potential galling under certain conditions, eliminating unwanted noises and vibrations being generated from the limb pocket during the draw cycle.

VertaTune Clicker Plate

The Formula XD comes standard with three options of VertaTune rest plates - high, middle and low, allowing for the customisation of arrow rest position for optimised tuning and performance that matches the archer's shooting style.

New optimised grip position

The Formula XD features an optimised riser geometry, shifted from previous generation Hoyt Formula recurves to achieve better tuning by decreasing unwanted vertical nock travel. This centralised grip position promotes more consistent engagement from the archer and helps achieve a linear shot response.

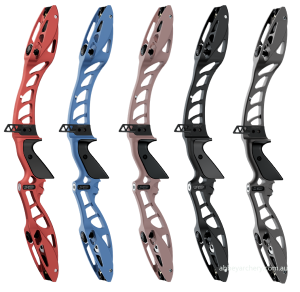

New colour options, perfect for any podium.

Formula XD is available in six CeraKote colours including Championship Red, Liquid Blue, Frost White, Slate, Pink Champagne and Black Ink.

Specs at a glance

  • Riser style Original Hoyt Geometry
  • Perfect Balance Weight System two 1 oz weights included that can be moved between the top and bottom limb pockets
  • Recurve Riser Limb Adjustment Technology
  • VertaTune Clicker System with 3 machined aluminium Verta-Tune clicker plates for low, medium and high rest/plunger positions, 6mm overall adjustment for fine tuning
  • Collet Style Tiller Bolts
  • Pro-Series Limb Adjustment Dowels with standard left and right adjustability
  • Hoyt's lightest machined aluminium recurve riser
  • Independent limb tuning technology allows for micro adjustments to the limbs, ensuring they always stay centered and balanced
  • Length 25"
  • Mass weight 2.76lbs or 1,252 grams riser weight or 2.88 lbs or 1,306 grams riser weight with Perfect Balance Weight System installed
  • Available in right hand and left hand. Please specify RH or LH
  • Riser comes in a strong cardboard box and is protected in a Riser Bag with plush lined insides and Velcro flap to secure riser

All Hoyt Formula XD Risers are compatible with Hoyt recurve grips and accept all Hoyt Formula recurve limbs. Hoyt Formula XD Risers do not suit any limbs with universal or international limb fitment (ILF).

Available in Cerakote Finish target colour options of InfraRed, Stardust Purple, Cosmo Blue, Solar Orange, Black Ink and Slate. Please specify colour required.

Since the introduction of the Hoyt Formula series more then seven years ago, there has been nothing but success for the riser platform, taking out tournaments, titles and records around the world at all levels of competition.

With the advanced inclusions to the Formula XD the only logical direction for archer performance is onward and upward. The Formula XD is the ultimate recurve riser for superior performance be it on the competition field or at your local club.

Experience the next generation of recurve archery innovation. Hoyt has produced their most technologically advanced recurve riser ever. Take the challenge and buy a Formula XD Riser today.

Get Serious. Get Hoyt.
