Hamskea Limb Clamp Assembly Kit

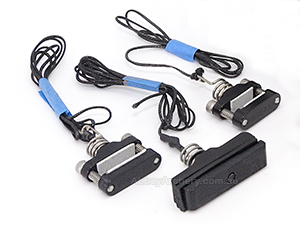

Hamskea Archery Solutions LLC has designed a series of machined limb clamps that will accommodate virtually every type of bow on the market today to include both solid limb and split limb designs. The limb clamp comes in 3 configurations of Standard (centre clamp in image), 5-8 inch (right) and 3-4 inch (left).

The Standard Limb Clamp works on most solid limb as well as most split limb bows and is a dual bracket design with a single screw that sandwiches the limb between the brackets while acting as the dampening coil mounting device. The Standard Limb Clamp bridges across the two individual limbs on a split limb bow or fits in the V of the limb below the cam on a solid limb bow. It comes with rubber pads to protect the finish on your limbs. The attachment cord is a .030 inch diameter braided halo material, with low stretch characteristics and has a 215# tinsel breaking strength. The Hamskea limb clamp system can also be used to retrofit to your existing non-Hamskea limb actuated arrow rest.

The new style Limb Clamp fits the 2013 to the Current model Hoyt bows with the AirShox limb dampening system and requires either the low profile 5-8 inch or the 3-4 inch limb clamps and fits perfectly, with room to spare. There is not enough space between the cam and the AirShox with the Standard Limb Clamp. The 5-8 inch Limb Clamp was specifically designed for the Hoyt Spyder bow series with the #3 RKT cam but can be used on other narrow limb bows as well. With the dual bracket and screws, even pressure is applied through the clamp system. The dampening coil is mounted to the lower clamp via a separate mounting screw. Couple this with a protective sticky tape and the clamp will not damage the finish of your limb and will not move. This clamp is best served on limbs that range in width from 0.625 inch to 0.5 inch. This clamp can be used on Hoyt Spyder, Mathews Creed and other narrow limb bow designs.

3-4 inch Limb Clamp was designed to be low weight and low profile, yet still serves as a true mechanical attachment mechanism for the dampening coil and cord to your rest. With the dual bracket and screws, even pressure is applied through the clamp system. The dampening coil is mounted to the lower clamp via a separate mounting screw. Couple this with a protective sticky tape and the clamp will not damage the finish of your limb and will not move. This clamp is best served on limbs that range in width from 0.75 inch to 0.65 inch. This clamp can be used on Hoyt, Mathews, Bear, PSE, Strothers and a variety of other split limb bow designs.

The dampening spring coil on the Standard, 5-8 inch and 3-4 inch limb clamps prevents the cord from stretching, acts as a shock absorber when the shot is fired and manages the launcher rebound.

The 5-8 inch and 3-4 inch limb clamps work with the Hamskea VersaRest as well as other manufacturers' limb actuated style arrow rests. All limb clamps come in a black colour finish.

The inline spring buffers the shock and reduces launcher bounce back helping to eliminate launcher-arrow contact. Limb Clamp Assembly Kit includes top & bottom limb clamps, anti-skid limb pads (with Standard clamp), spring/halo, thick limb screw and thin limb screw. Only one kit is being offered for sale here.

To figure out the limb clamp that will work for your bow, measure the width of one of your split limbs. Limbs with a width of 0.5 inch to 0.625 inch should use the 5-8 inch Limb Clamp, while limbs with a width of 0.75 inch should use the 3-4 inch Limb Clamp.

Limb clamp is available in Standard, 5-8 inch and 3-4 inch models. Please specify clamp type.

Hamskea Archery Solutions LLC is a company for archers by archers, owned and operated by Tim Gillingham, Andrew Munsell & Shawn Greathouse. Hamskea stands for Tim Gillingham, The HAMmer, Andrew Munsell, SKeeter, Shawn Greathouse, EAsy.

Hamskea Archery Solutions - maximising accuracy!
