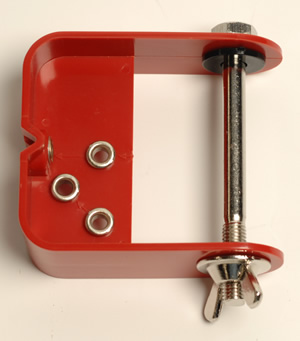

BCY Model 26 Serving Tool

Brand: BCY

The BCY Model 26 Serving Tool has just the right tension to make serving strings and cables a breeze

BCY Model 26 Serving Tool

Sale Price: (normally $33.95)
[$27.23 excl. GST]

BCY Model 26 Serving Tool Description

The BCY Model 26 Serving Tool is currently on Special. Normally $33.95 but out they go at just $29.95, only while stocks last. Save a healthy $4.00 off the retail price, but hurry as this bargain is running out fast and once it's gone...well, it's gone.

The BCY Model 26 Serving Tool features adjustable tension and smooth thread flow.

Excellent for quick, tight centre servings. The BCY Model 26 Serving Tool is dependable and has stood the test of time.

The server has two thread tension adjustments to ensure consistently smooth and uniform string serving. Correct serving tension is important to make sure the serving remains tight on the string and also prevents peep rotation.

The server has a large exit hole and brass eyelets to reduce abrasion of serving material.

Tension can be adjusted at the thread spool and the guide washer. This guarantees no overlapping winds as the server is spun around the bowstring.

The string can be served on a bow at rest with the cables held out of the way or while stretched between two posts of a string jig under tension is the optimum location.

String server includes easy to follow illustrated instructions.

  • A serving is started by holding a short piece of the serving thread on the bowstring and over-wrapping it. The wrap is continued until the 'V' notch of the server rests securely against the bowstring
  • The server is spun around the string
  • The server guides itself down the string, laying a tight series of uniform wraps with no overlapping
  • About 0.5" from the end of the serving, lay a loop of thread on the bowstring
  • Over-wrap this to the end of the serving. Cut the serving thread from the server and run the thread end through the loop
  • With the loop, pull the serving thread back under itself and remove the looped end. Trim and finish the serving to your preference
  • When loading a new spool onto the server, special attention should be given to the loading procedure
  • 1. Remove the wing nut holding the spool and insert a fresh serving spool with thread coming off the spool, away from you
  • 2. Run the thread under the washer axle and pull thread up tightly between the guide tension washers
  • 3. Run end of serving through the hole in the 'V' notch of the server
  • 4. Adjust the tension and washer so thread pulls off smoothly, but with resistance

A spool of thread will do 40 or more servings. When the last layer of thread appears on the spool, there is enough thread to complete one more serving. Numerous types of BCY serving thread can be purchased separately.

Perfect servings in minutes!

The BCY Model 26 Serving Tool is currently on Special. Normally $33.95 but out they go at just $29.95, only while stocks last. Save a healthy $4.00 off the retail price, but hurry as this bargain is running out fast and once it's gone...well, it's gone.
